Rotel RAS-5000 Integrated Amplifier

Rotel RAS-5000 Integrated Streaming Amplifier
Powerful All-in-One Audiophile Hub with Modern Streaming and TV Integration

Overview
The Rotel RAS-5000 is a muscular streaming integrated amplifier designed to simplify your entertainment. It delivers audiophile-quality Class AB amplification, modern streaming functionality, and TV-friendly HDMI eARC—all in a sleek, feature-rich unit. Built to integrate seamlessly into both hi-fi and home theater setups, it places convenience and performance at the forefront.

Robust Class AB Power

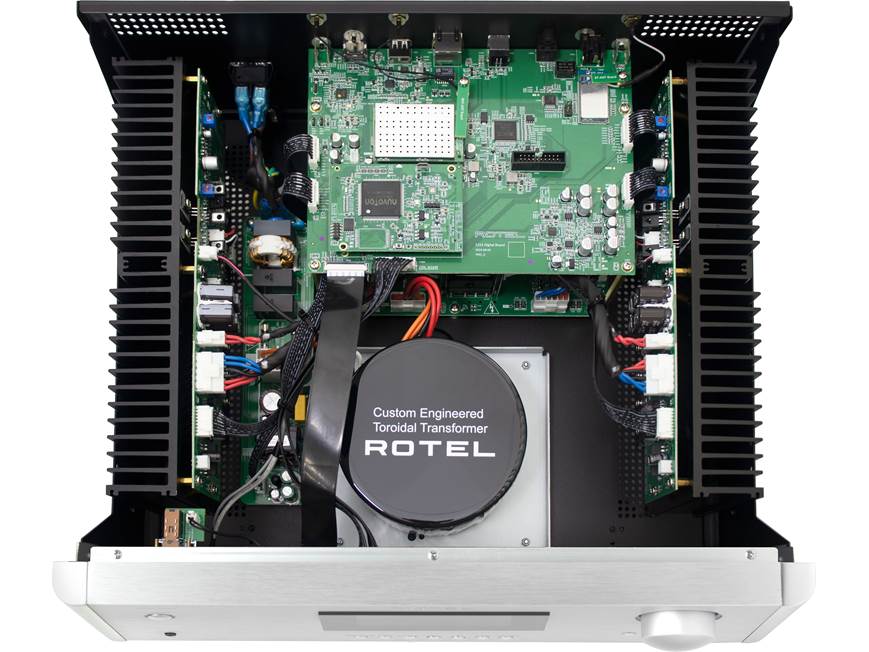

The RAS-5000 is built on a substantial linear power supply featuring a custom toroidal transformer. It delivers 220 W per channel into 4 ohms (140 W into 8 ohms), ensuring effortless drive and controlled dynamics across demanding speakers.

Premium Streaming & Digital Integration
Connect via Ethernet or dual-band Wi-Fi and enjoy music from Spotify Connect, Tidal Connect, Internet Radio, AirPlay 2, Google Cast, aptX HD Bluetooth, and Roon Ready streaming.

HDMI eARC for Cinematic Audio
With HDMI eARC, the RAS-5000 integrates seamlessly with your TV, delivering high-quality audio to your speakers without additional components.

High-Resolution DAC
A 32-bit ESS DAC enables precise, high-resolution digital playback. Supported formats include PCM up to 24-bit/192 kHz via S/PDIF, USB Audio Class 2 up to 24-bit/384 kHz, MQA decoding, and Roon Ready compatibility.

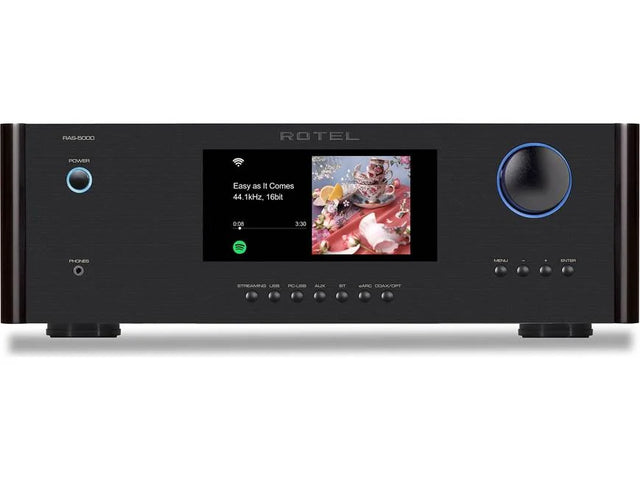

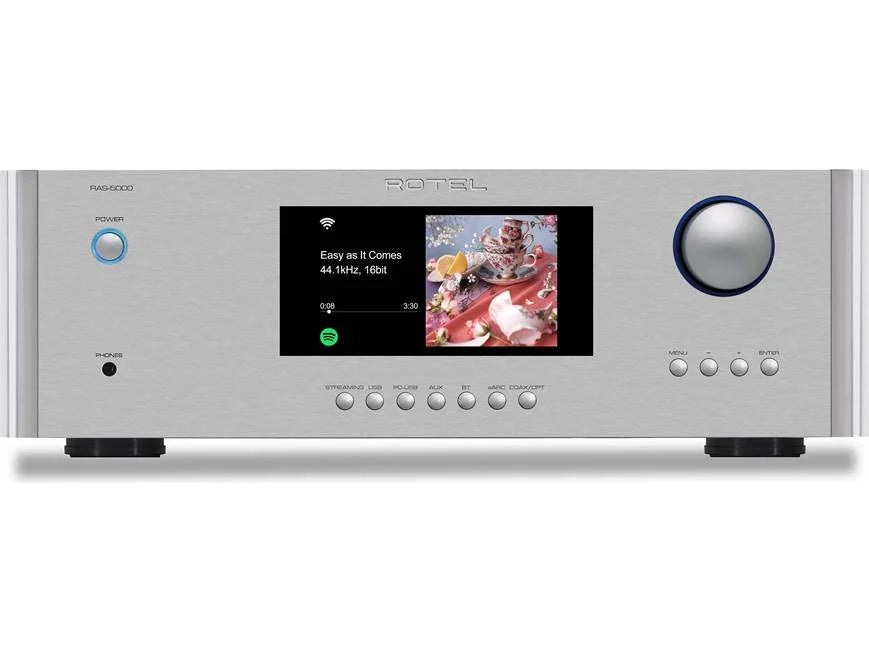

Elegant Display & User Interface
A full-color front-panel display shows album art, track information, and input status. Source selection is intuitive with front controls, a premium remote, or app-based operation.

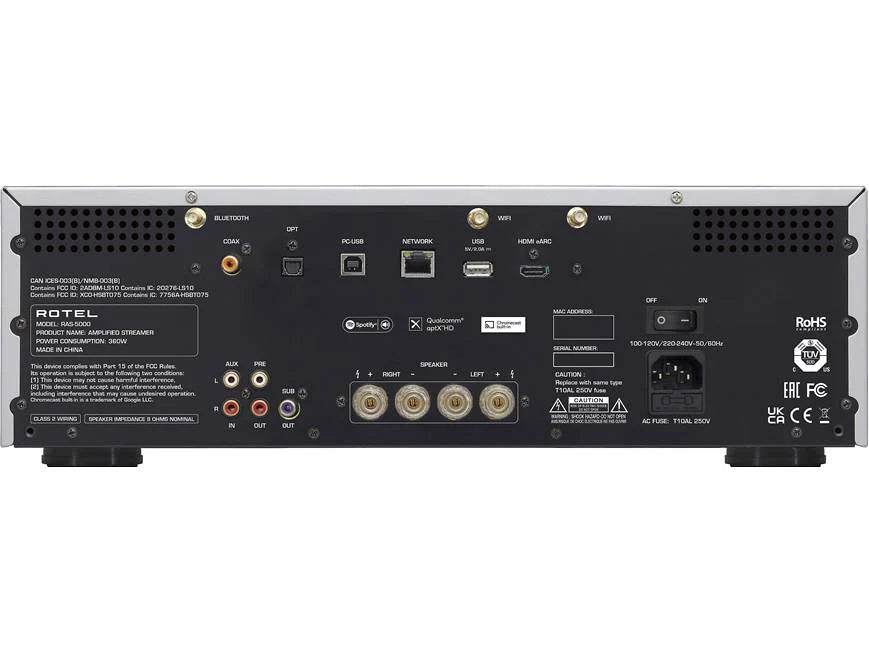

Inputs & Outputs

• Analog RCA

• Optical and coaxial digital inputs

• HDMI eARC

• USB-A for local media playback

• Preamp and subwoofer outputs

• 3.5mm headphone output

Audio Performance

• THD: <0.03%

• Frequency Response (Line): 10 Hz – 100 kHz (±0.5 dB)

• Signal-to-Noise Ratio: 103 dB (line), 105 dB (digital)

• Damping Factor: 290

Build Quality
Measuring 430 × 144 × 425 mm and weighing nearly 16 kg (35 lbs), the RAS-5000 embodies Rotel’s build-first philosophy with robust construction and elegant design.
