Rotel A12MKII Stereo Integrated Amplifier

Rotel A12MKII Stereo Integrated Amplifier
Elegant Integrated Amplifier with Modern Digital Convenience

Overview
The Rotel A12MKII is a refined stereo integrated amplifier that blends classic Rotel sound quality with modern connectivity. Designed to serve as the centerpiece of your hi-fi system, it offers robust power, a premium DAC, and versatile input options that make it equally at home with analog sources and today’s high-resolution digital formats.

Powerful Class AB Amplification
With 60 watts per channel into 8 ohms (120W into 4 ohms), the A12MKII delivers ample power to drive a wide range of speakers with authority and control. Its oversized toroidal transformer, a Rotel signature, ensures stable, high-current power delivery for dynamic and engaging performance across all genres of music.

High-Resolution DAC and Digital Inputs
Equipped with a 32-bit Texas Instruments DAC, the A12MKII handles digital sources with precision and clarity. Four digital inputs (2 coaxial, 2 optical) support PCM up to 24-bit/192 kHz, while the asynchronous USB-B input extends performance up to 32-bit/384 kHz and full MQA decoding, making it an excellent choice for high-resolution streaming and computer audio.

Versatile Analog Connectivity
In addition to digital flexibility, the A12MKII features four analog RCA inputs and a moving magnet phono stage for direct connection to your turntable. This combination of inputs makes it simple to integrate traditional hi-fi sources into a modern system.

Wireless Streaming with Bluetooth
The built-in aptX Bluetooth receiver adds convenience for everyday listening, allowing you to stream directly from smartphones, tablets, or laptops with improved fidelity over standard Bluetooth.

User-Friendly Design and Control

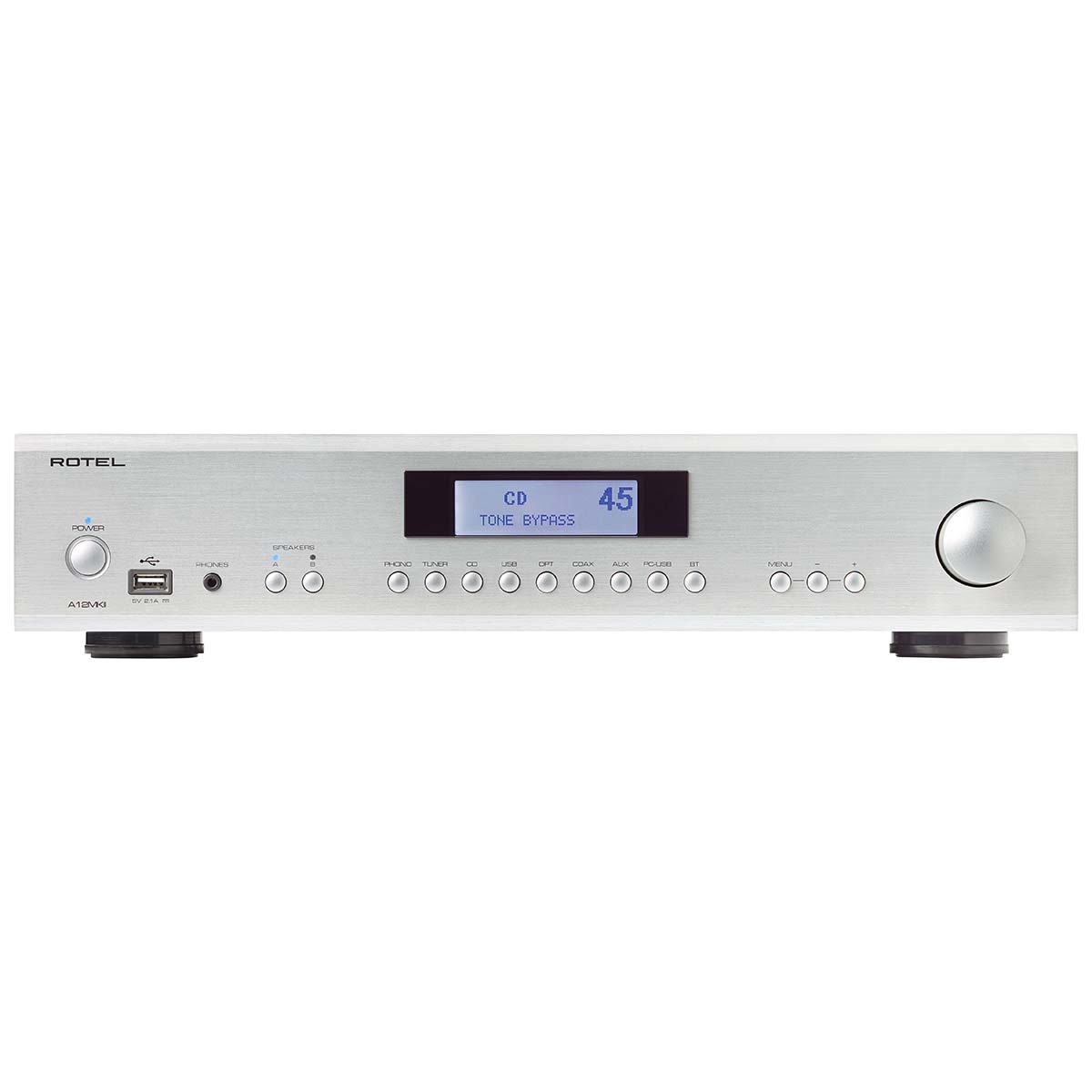

The clean front panel design includes an easy-to-read display, intuitive controls, and a 3.5mm headphone output for personal listening. A full-function remote is included, and integration into smart home or custom systems is possible via RS232 and dual 12V triggers.

Refined Audio Performance
Engineered with Rotel’s “Balanced Design Concept,” the A12MKII maintains low distortion and high signal-to-noise ratios. With a damping factor of 220 and extended frequency response, it delivers tight bass, open mids, and smooth, detailed highs.

Specifications

• Power Output: 60W per channel (8Ω), 120W (4Ω)

• DAC: 32-bit Texas Instruments

• Inputs: 4 analog RCA, 1 MM phono, 2 optical, 2 coaxial, 1 USB-B (up to 32-bit/384kHz, MQA), Bluetooth aptX

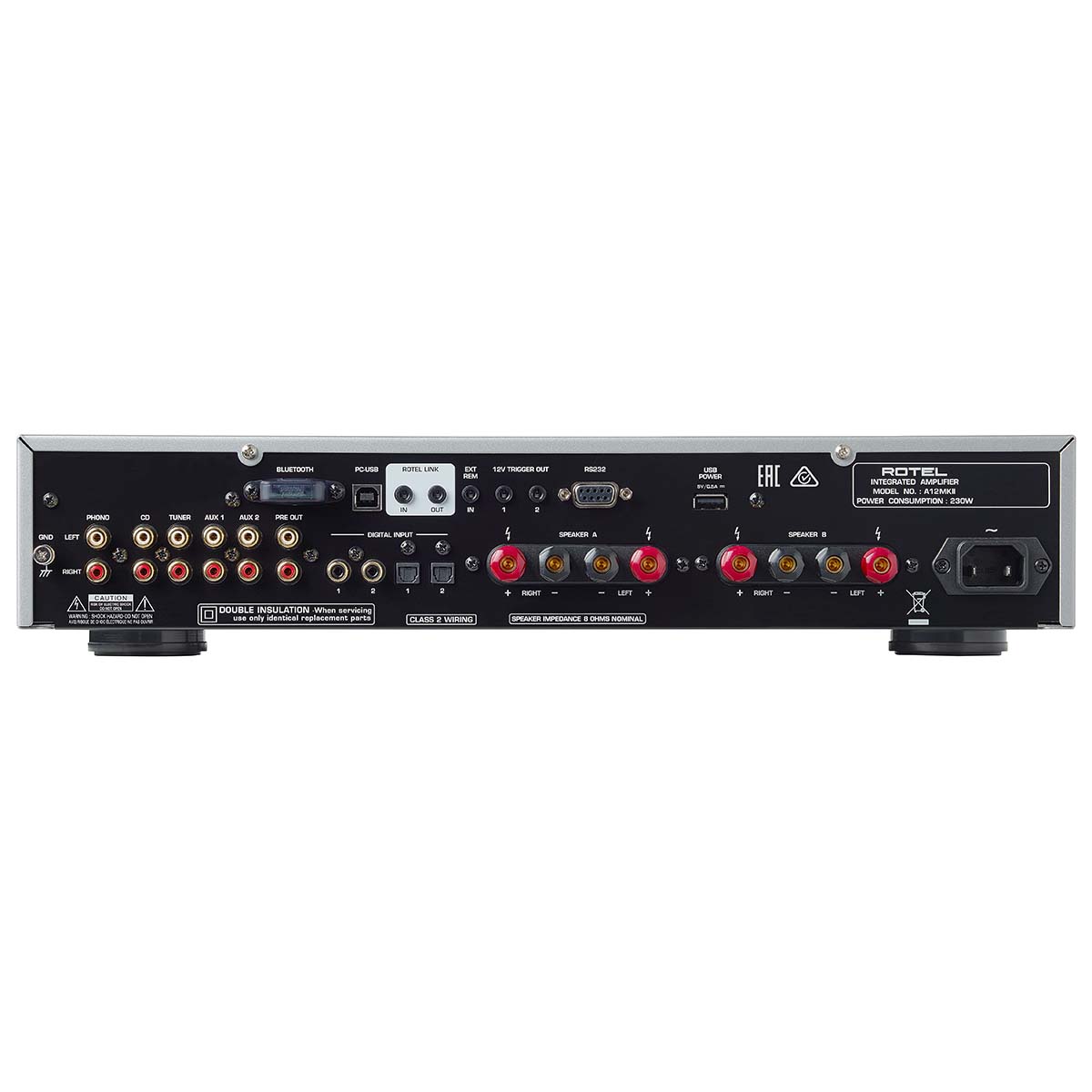

• Outputs: A/B speaker terminals, pre-out, headphone (3.5mm)

• Frequency Response: 10Hz – 100kHz (line), 20Hz – 20kHz (phono), 10Hz – 90kHz (digital)

• THD: <0.018%

• SNR: 100dB (line), 90dB (phono), 103dB (digital)

• Dimensions: 430 × 93 × 345 mm

• Weight: 8.76 kg
