Smart CI Solution with Audiophile Performance for Distributed Audio
An eight-channel powerhouse promises NAD’s legendary performance with reliability and stability with lots of installer-friendly features. The NAD CI 8-120 is an advanced amplifier targeted squarely at high performance distributed audio systems. Delivering a conservative 8 x 120 watts per channel @ 8 ohm, it is also bridgeable to 4 x 200 watts per channel @ 8 ohm. IHF Dynamic Power in bridged mode is 4 x 350 watts per channel @ 4 ohm. To put it simply, the CI 8-120 will drive most anything you need in your multi-room audio system.
The hybrid digital amplifier platform delivers stable and efficient power with high current capability, all in a slim 1U rack space. To make this level of performance possible, the CI 8-120 DSP uses a customized version of the proven Hypex UcD output stage. This allows for massive power with extremely low distortion and noise in the audible range. Every detail of this design has been carefully executed to wring out every last drop of performance. Designed to deal with the demands of the CI world, it was made to handle long cable runs and difficult speaker loads.
NAD is keenly aware that reliability is paramount for a professional installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 8-120 amplifier is stable at 4 ohm impedance. A variety of power methods are available as well as an Eco mode setting for minimal power consumption.
- 120 watts per channel into 8 ohms (20-20,000 Hz) at 0.05% THD with all channels driven
- 135 watts per channel at 4 ohms with all channels driven
- 200 x 4 into 8 ohms (bridged, all channels driven)
- 4-ohm stable for use with a wide range of speakers
- Signal-to-noise ratio: 88 dB
- Browser-based gain control, DSP calibration and more
- Rack mountable (brackets included)
- 12-volt trigger/signal-sensing auto-on with auto shut-off

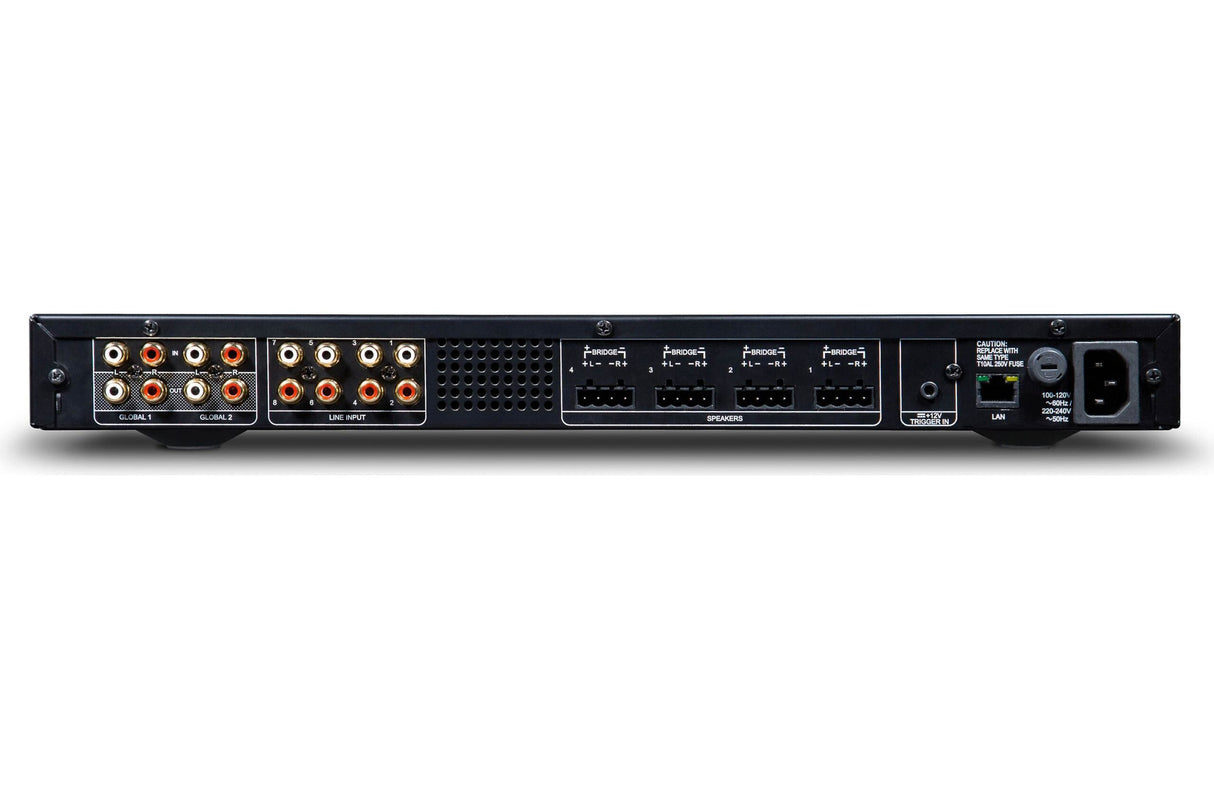

Connections
- Ethernet LAN port for setup, control, and firmware updates
- Four pairs of RCA inputs can be assigned to specific or multiple speaker output channels
- Dual global RCA bus inputs/outputs for distributing a single audio source among multiple amp channels and passing input signal on to another amplifier
- Phoenix-style outputs for four pairs of speakers
- 12-volt trigger input
In The Box
- 8-Channel power amplifier
- 6' AC power cord
- 4 Phoenix-style speaker connector blocks
- 4 Feet
- 4 Screws
- Quick Setup Guide
- Warranty Card
- Owner's Manual
